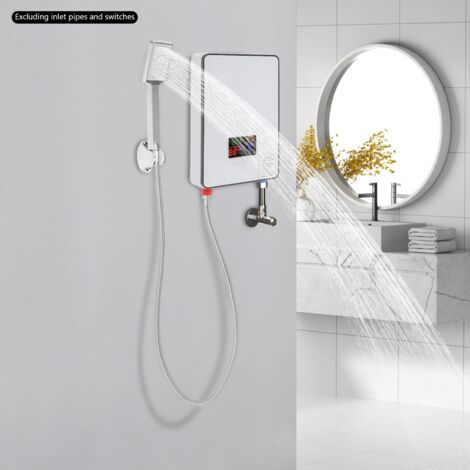

Calentador de agua instantáneo eléctrico de agua caliente 6500W con manguera de ducha de mano 220V 30-55 ℃

Anwendung

Es eignet sich für Badezimmer, Friseursalons, Hotels, Wohnwagen, Bars, Schulen, Krankenhäuser, Gemeinden usw.

Spezifikationen

Farbe: Weiß

Stil: Modern

Form: Rechteck

Montage erforderlich: Ja

Befestigungsart: Wandmontage

Material: Gehärtetes Glas, Edelstahl

Steuerungsmethode: Touchscreen

Wassereinlass-Modus: Unterer Einlass

Nennspannung: AC 220V, 50HZ

Nennleistung: 6500W

Nennstrom: 29.5A

Nennwasserdruck: 0,6Mpa

Drahtdurchmesser: ≥ 4 mm/0.16in

Magnetkartenzähler: 10 (40) A

Mechanisches Messgerät: ≥5 (20) A

Luftschalter: ≥40A

Startwasserstrom: 1.2-1.5L/0.32-0.4gal/min

Durchmesser der heißen Auslassbefestigung: ID 0.7cm/2.76in, OD 2cm/0.79in

Durchmesser der kalten Auslassbefestigung: ID1.2 cm/0.47in, OD 2 cm/0.79in

Anwendbarer Wasserdruck: 0.02-0.6Mpa

Drahtanforderungen: ≥4mm²/0.006in² Kupferdraht, ≥32A

Bildschirmtyp: LED

Wasserdicht Niveau: IPX24

Temperaturbereich: 30-55°C/86-131°F

Bruttogewicht: 2,2kg/4,85lbs

Nettogewicht: 2,09kg/4,61lbs

Produktgröße: 18.6*5.7*27.7cm/7.32*2.24*10.91in

Paket Größe: 32*27*13cm/12.6*10.63*5.12in

Paket enthalten

1* Elektrischer Wasserkocher

1* Handbrause

1* Hand Duschrohr

1* Handbrausehalter

2* Montagebügel

1* Englisches Handbuch

Alles Zubehör zur Montage

Application

It is suitable for bathrooms, hairdressing salons, hotels, caravans, bars, schools, hospitals, communities, etc.

Specifications

Color: White

Style: Modern

Shape: Rectangle

Assembly Required: Yes

Mount Type: Wall-mounted

Material: Tempered Glass, Stainless Steel

Control Method: Touch Screen

Water Inlet Mode: Lower Inlet

Rated Voltage: AC 220V, 50HZ

Rated Power: 6500W

Rated Current: 29.5A

Rated Water Pressure: 0.6Mpa

Wire Diameter: ≥ 4 mm/0.16in

Magnetic Card Meter: 10 (40) A

Mechanical Meter: ≥5 (20) A

Air Switch: ≥40A

Starting Water Flow: 1.2-1.5L/0.32-0.4gal/min

Diameter of Hot Outlet Fitting: ID 0.7cm/2.76in, OD 2cm/0.79in

Diameter of Cold Outlet Fitting: ID1.2 cm/0.47in, OD 2 cm/0.79in

Applicable Water Pressure: 0.02-0.6Mpa

Wire Requirements: ＞4mm²/0.006in² Copper Wire,  ≥32A

Screen Type: LED

Waterproof Level: IPX24

Temperature Range: 30-55°C/86-131°F

Gross Weight: 2.2kg/4.85lbs

Net Weight: 2.09kg/4.61lbs

Product Size: 18.6*5.7*27.7cm/7.32*2.24*10.91in

Package Size: 32*27*13cm/12.6*10.63*5.12in

Package Included

1* Electric Water Heater

1* Hand Shower

1* Hand Shower Tube

1* Hand Shower Holder

2* Mounting Brackets

1* English Manual

All Accessories for Assembly

Notes

• Please note that to ensure product quality, the product will be checked before leaving the factory, if you receive the product found inside the residual water droplets, this is a normal phenomenon that does not affect the use.
• Please note that the water heater must be fitted with a grounding electrode and earth leakage protector (not included).
• Please note that it is strictly prohibited to heat the water heater when there is no water or when it is frozen. Do not use this product when the temperature is below 32℉.
• Please note that this product must be installed vertically/upright, if the angle of inclination is too large, the machine will not work.
• Please note that the water heater should be connected to the water source before powering on to avoid dry burning. If the local temperature is relatively low and the water flow rate is high, the water temperature can only rise to a certain level.
• If you want to use the product at home with a low water pressure, or low water flow, or with the water supplied by the roof water tower, please install a booster pump.
• Please beware of electrical safety hazards, improper installation may lead to major safety hazards, so please be sure to let the professionals install the product rather than install it yourself. Please ensure that the ground wire is connected reliably. This product needs to be mounted on a solid wall.
• Please read the manual and the labels on the product before use and pay particular attention to the safety instructions contained therein.
• The water provided by this product is not recommended for direct consumption.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
