Universal T3 T4 T04E V-Band Turbocompresor 1.5L-2.5L + 2.5" 63mm Universal Intercooler Manguera Tubo Tubería Ki
con el código
¡Creemos que esto puede interesarte!
Comparar con artículos similares
Información del producto
Descripción
* This is universal application turbo, so modification might be required for some vehicles.
T3/T4 T04E Turbocharger with Internal Wastegate
Application
Perfect for all 4 or 6 CYL, 1.5L-2.5L engines
Cooling Type: Oil Cooled Wastegate Internal
Horse Power: Horse Power Boost up to 420HP
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet Flange: V-Band Flange
Specification
Compressor
Compressor Trim: 48.1
Compressor Inducer Diamter: 52.7 mm
Compressor Exducer Diamter: 76 mm
Compressor A/R: 0.5
Turbine
Turbine Trim:74.2
Turbine Inducer Diamter: 64.8 mm
Turbine Exducer Diamter: 55.8 mm
Turbine A/R: 0.63
2.5" Universal Aluminum Intercooler Pipe Kit
-Made out of high quality of 6061 aluminum Manual polishing finished
-Manufactured from high quality aluminum for durable use:
-Straight Layout and Appropriate Pipes' Radius lead to less pressure loss
-High Pressure Resistant Hoses bring out high performance of intercooler
-All pipes are well externally polished
-All intercoolers are bar & plate design for better cooling efficiency
-Professional Installation Is Highly Recommended
-Pipe Thickness: 1.8mm
-Pipe Length: 18"

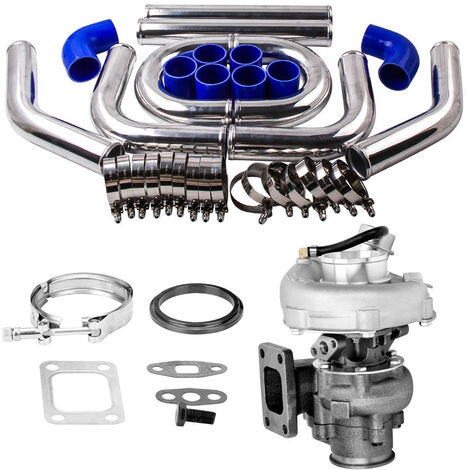

Package includes
1x Turbocharger
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: 2 Years
Accessories: You will get exactly as shown in the picture above
Note:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
Características
- MarcaBFO
- MaterialAluminio
- Garantía2 año(s)
- Referencia ManoManoME70887384
- MMID956302426972
