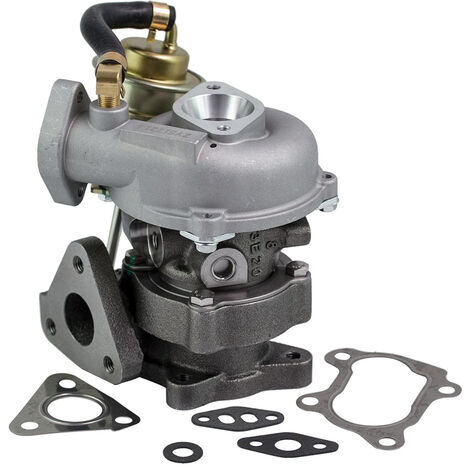

Turbo VZ21 Turbocharger for Suzuki ALTO Works with YA1 F6AT Engine 1390062D50
- Oferta válida sólo hoy.
¡Creemos que esto puede interesarte!
Comparar con artículos similares
Información del producto
Descripción
Application
for Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm 100HP
for Suzuki ALTO Works with YA1, F6AT Engine
for Briggs and Stratton, for Briggs Power with 21R707-0011-G1 Engine
Part Number OEM Number:
VZ21, RHB31, VE110069
13900-62D51, 1390062D51
1390062D50, 13900-62D50
Specifications:
Turbo Model: VZ21
Engine: YA1, F6AT, for Isuzu 4TNA，21R707-0011-G1 Engine
Cooled Type: water and oil cooled
Bearing Type: Journal Bearing
fit for: 500 cc to about 1000cc
Internal-wastegate: 15psi
Horse Power: 23-100HP
Compressor wheel
major diameter (outlet exducer): 37.1mm
Compressor Inducer: 24.2 mm
Trim (comp): 42.5
Turbine wheel
major diameter (inlet inducer): 35mm
Turbine Exducer Diameter: 26.7mm
Trim (exhaust): 58.2
Comp A/R: 0.7
Warranty: 2 Years
NOTE
* Please confirm your old turbo part number matches up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* It is for repairing or rebuilding the complete turbo
* For any needs please contact us
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Características
- MarcaMAXPEEDINGRODS
- Largo24 cm
- Ancho23 cm
- MaterialAluminio
- Garantía2 año(s)
