General Description

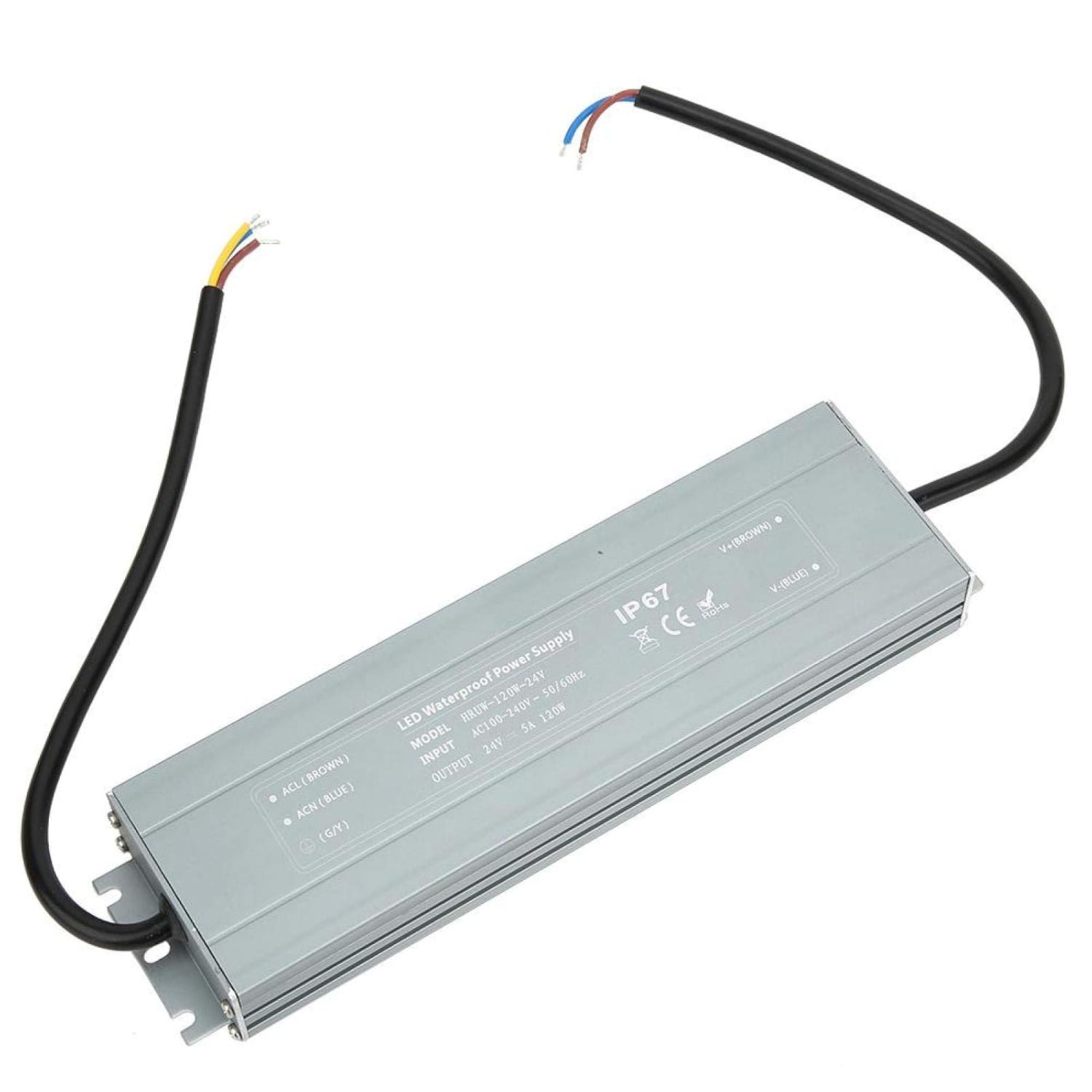

Ultra-thin HRUW-100W-24V LED power supply, designed for indoor and outdoor applications. This LED driver transformer is waterproof with IP67 protection, ideal for powering 24V DC low-voltage LED lamps. Its aluminum alloy and silicone construction ensures excellent heat dissipation, guaranteeing stable operation even in harsh environments.

Technical Specifications

• AC Input: 100-260 V
• Frequency: 50/60 Hz
• Constant Voltage Output: 24 V
• Output Current: 4.2 A
• Maximum Load: 100 W
• Dimensions: 210 x 58 x 25 mm
• Non-dimmable

Protection

• IP67 Certified
• Overvoltage Protection
• Overheating Protection
• Overcurrent Protection
• Short Circuit Protection

Usage

For optimal use, it is recommended to maintain the load at less than 85% of the LED power supply's capacity in order to prolong its lifespan. The combined power of the connected LED lights must not exceed 100 watts.
