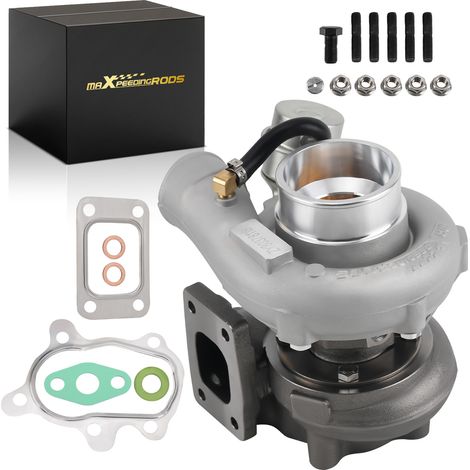

GT2871 GT2860 Billet Turbo A/R 0.6 0.64 T25 Turbocompresor SET for 1.5L-2.0L NEW

Este turbo es un turbocompresor universal, algunas modificaciones pueden ser necesarias dependiendo del vehículo individual. Ofrecemos las imágenes más claras posibles, póngase en contacto con nosotros si es necesario. Por favor, compruebe los detalles antes de comprar. Póngase en contacto con nosotros por correo electrónico de Ebay inmediatamente cuando tenga preguntas.

Street T25 T28 GT25 GT28 GT2860 GT2871 Turbocharger

Application

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Perfect for all 1.5L-2.0L engine，for all 4 cylinder engine

Specification:

Exhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet  Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm

Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Thrust Bearing: 270 Degrees
Internal Wastegate: Yes
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Feed Thread Size: M12*1.25
Oil Drain Size: 14mm
Oil Drain Thread Size: M8*1.25
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
package size：26x24x22cm
package weight：7250g

Feature:

1. Carcasa de la turbina: Silicio-Molibdeno - Resistencia a altas temperaturas, altamente estable y dúctil, resistente a la corrosión y al agrietamiento, aumenta la durabilidad y la confiabilidad.

2. Rueda de turbina: aleación K419: resistencia a altas temperaturas, convierte de manera eficiente los gases de escape del motor en energía cinética, resiste la descomposición térmica for un funcionamiento confiable y sin problemas.

3. Rueda del compresor de palanquilla: rueda del compresor mecanizada CNC de aluminio de palanquilla forjada: alta eficiencia, respuesta rápida, menor consumo de combustible, funcionamiento suave.

4. Sello de aceite: anillo de sello de aceite de acero de alta velocidad: resistente a la abrasión y al calor, protege los cojinetes, evita las fugas de aceite y el humo.


Notice:
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
