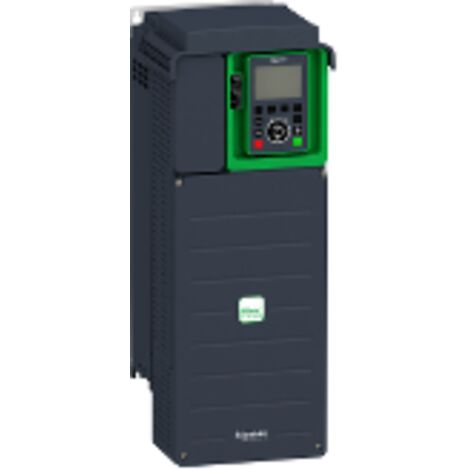

Variador de velocidad ATV630 - 22 kW/30 HP - 380...480 V - IP21/UL Tipo 1 - ATV630D22N4

Complementariodesign of frequency changer : U converterFrecuencia de red : 50...60 Hzambient air transport temperature : -40...70 °Crelative symmetric mains voltage tolerance : 10 %maximum output voltage : 480,0 Vrelative symmetric network frequency tolerance : 5 %maximum acceleration under shock impact (during operation) : 150 m/s² at 11 mspermitted relative humidity (during operation) : Class 3K5 according to EN 60721-3maximum acceleration under vibrational stress (during operation) : 10 m/s² at 13...200 HzPotencia nominal de salida : 22,0 kW4 quadrant operation possible : Falsepermitted relative humidity (during transport) : Class 2K5 according to EN 60721-3permitted relative humidity (during storage) : Class 1K5 according to EN 60721-3capacity of DC link : 1500,0 µFmaximum deflection under vibratory load (during operation) : 1.5 mm at 2...13 Hzoperating element present : Truenumber of HW interfaces serial TTY : 0power loss per device current dependent : 670,0 Wpower loss static current independent : 23,0 Wnumber of output phases : 3maximum acceleration under vibratory load (during transport) : 10 m/s² at 13...200 Hznumber of input phases : 3number of inputs, potential-free : 0maximum deflection under vibratory load (during transport) : 1.5 mm at 2...13 Hzbrake chopper integrated : Falsemaximum acceleration under shock load (during transport) : 150 m/s² at 11 msnumber of HW interfaces USB : 0number of HW interfaces other : 0optical interface present : Falsecomputer port : Truesupporting protocol for TCP/IP : Trueapplication in industrial area permitted : Trueapplication in domestic and commercial area permitted : Falsesupporting protocol for PROFIBUS : Truenumber of HW interfaces industrial Ethernet : 1number of inputs, bidirectional, not potential-free : 01 phase low current possible : Falsenumber of HW interfaces parallel : 0supporting protocol for KNX : Falsesupporting protocol for ASI : Falsenumber of HW interfaces PROFINET : 0supporting protocol for CAN : Truesupporting protocol for INTERBUS : Falsesupporting protocol for DeviceNet : Falsesupporting protocol for SUCONET : Falsesupporting protocol for LON : Falsesupporting protocol for MODBUS : Truesupporting protocol for Data-Highway : Falsesupporting protocol for PROFINET IO : Truesupporting protocol for PROFINET CBA : Truemaximum acceleration under shock load (during storage) : 150 m/s² at 11 mssupporting protocol for Foundation Fieldbus : Falsesupporting protocol for SERCOS : Falsemaximum deflection under vibratory load (during storage) : 1.5 mm at 2...13 Hzsupporting protocol for DeviceNet Safety : Falsesupporting protocol for INTERBUS-Safety : Falsesupporting protocol for PROFIsafe : Falsesupporting protocol for EtherNet/IP : Truesupporting protocol for AS-Interface Safety at Work : Falsemaximum acceleration under vibratory load (during storage) : 10 m/s² at 13...200 Hzwith safety function Safe torque off (STO) : Truewith sft fct Safe Stop 2 (SS2) : Falsewith safety function Safe Stop 1 (SS1) : Falsesupporting protocol for SafetyBUS P : Falsesupporting protocol for BACnet : Falsesupporting protocol for other bus systems : FalseCorriente nominal de salida : 46,3 Awith safety function Safe brake management (SBC/SBT) : Falsewith safety function Safe Operating Stop (SOS) : Falsewith safety function Safely Limited Position (SLP) : Falsewith safety function Safely Limited Speed (SLS) : Falsewith safety function Safe Speed Monitor (SSM) : Falsewith safety function Safe Direction (SDI) : Falsebase load current at high overload : 39,2 Abase load current at low overload : 46,3 Anumber of HW interfaces serial RS232 : 0with safety function Safe programmable logic : Falsewith safety function Safe Position (SP) : FalseEMC limit value (complied) : Trueenvironmental class (during transport) : Class 2C3 according to EN 60721-3-2Class 2S1 according to EN 60721-3-2environmental class (during operation) : Class 3C3 according to IEC 60721-3-3Class 3S3 according to IEC 60721-3-3environmental class (during storage) : Class 1C3 according to EN 60721-3-1Class 1S2 according to EN 60721-3-1number of HW interfaces serial RS422 : 0number of HW interfaces serial RS485 : 1Tipo de montaje : Montaje en paredNúmero de fases de la red : 3 fasesnúmero de salida digital : 0salida discreta : Salidas relé R1A, R1B, R1C 250 V CA 3000 mASalidas relé R1A, R1B, R1C 30 V CC 3000 mASalidas relé R2A, R2C 250 V CA 5000 mASalidas relé R2A, R2C 30 V CC 5000 mASalidas relé R3A, R3C 250 V CA 5000 mASalidas relé R3A, R3C 30 V CC 5000 mATensión de salida :
