12V 5 L/min Bomba de aceite Bomba de aspiración Cambio de aceite Bomba de llenado con tubo de entrada de 8mm y 6mm

Description

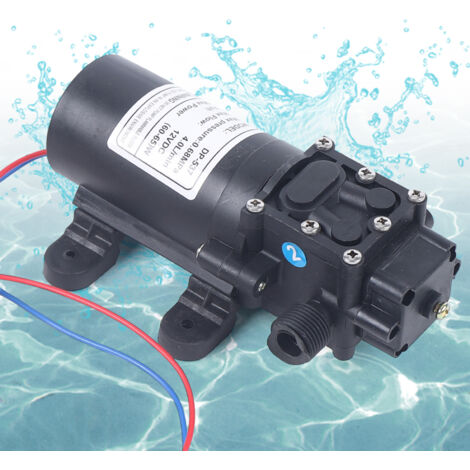

This diaphragm water pump, with its energy-efficient design, is suitable for a wide range of scenarios such as home, garden, and outdoor. With excellent self-priming ability, it can effectively improve the efficiency of water transfer, making it an ideal choice for you.

Key Features

Built to Last: The high-grade engineering plastic casing is wear-resistant, impact-resistant, with high durability, and not easy to deform,  which can better protect the internal components and prolong the product's service life.

High Efficiency: This unit utilizes a first-class pure copper motor that can reach a maximum power of 60 to 65 watts, ensuring high performance in a variety of application scenarios.

Safety Protection: It has overheat protection, overload protection, grounding protection, automatic start/stop, and switch back function, all these ensure the stability of the product's operation, and at the same time ensure the safety of use.

Thoughtful Design: It has the function of self-priming, when there is water in the tank, it can be pumped automatically and can be shut down when there is no water, which saves water for you.

Flexible and Practical: It comes with an on/off power switch and works by connecting the clip to a 12V car battery. It also comes with 3 x 0.43/0.31/0.24 inch pipes, which can be easily used in different environments.

Ideal Gift: Thanks to its practicality and powerful function, you can give it to your friends as a Christmas, Thanksgiving, or Halloween gift!

Easy Installation: With complete accessories and a standardized interface, it is easy to assemble, you can put it together by yourself and put it into use right away!

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Stable Base: A rubber base can better keep the product stable and ensure smooth and quiet operation.

Practical Filter: It effectively filters out impurities in the liquid, better protects the pump, and prolongs its service life.

Application

It is widely used in general industrial equipment, chemical equipment, shipbuilding, beverage, carpet and floor cleaning, water purification and water treatment equipment, vehicle cleaning, agricultural spraying, etc.

How to Use

1. Start running the car engine for a while, when the oil temperature becomes about 122 °F, then start pumping the oil.

2. Connect the pump to the power supply and run it for a while to observe whether the inlet and outlet ports are normal.

3. Open the filler cap, take out the dipstick, and force the pipe into the bottom of the fitting until the pipe doesn't move; then put the inlet pipe from the dipstick into the middle (put the pipe into the bottom of the tank, the bottom concavity, to pump out the oil completely); As there is oil-free or the pumping out is very slow or intermittent, it's usually caused by the pipes and fittings are loosened. You must reinstall the pipes and fittings.

4. After pumping the oil, remove the pipe, then run the pump for a while to pump out the remaining oil in the pump, or pump for a while until the pump head is clean.

5. If it has not been used for a long time, there may be suction-free, then simply pour water into the pump and run the pump for a few minutes until all the air is out.

Specification

Mount Type: Freestanding

Assembly Required: Yes

Material: Engineering Plastic, Pure Copper, Rubber

Color: Black

Style: Modern

Outlet Pipe Size (D*L): 11mm*140cm/0.43*55.12 in

Inlet Pipe Size (D*L): 8mm*100cm/0.31*39.37 in, 6mm*100cm /0.24*39.37in

Maximum Pressure: 0.68MPa

Maximum Flow Rate: 4L/min /1.06 GPM

Voltage: 12V DC

Maximum Power: 60-65W

Product Size (L*W): 16.76*7.49cm/6.6*2.95in

Package Size: 21*13.5*10cm/8.27*5.31*3.94in

Gross Weight: 0.70kg/1.54lbs

Net Weight: 0.67kg/1.48lbs

Package Included

1* Diaphragm Water Pump

3* Pipes

Notes

• Please check the style and size before purchasing.
• If you want to connect this pump to an AC power source, you will need a power converter. Please use it when the engine is hot, the oil is warm and the viscosity is low as this will make it easier and quicker to pump.
• Please note that the product will be tested at the factory so a small amount of moisture left in the product is normal.
•  It is designed for pumping engine oil. It can also pump gasoline and diesel, but it may not be able to transfer quickly. It must be cleaned immediately after use.
• Please note it should only be used to pump clean water. If you need to pump liquids with impurities, be sure to install a filter at the inlet for use!
• The motor is slightly waterproof so don't worry too much about splashing (just wipe it off), but it is strictly forbidden to submerge the pump motor in water.
• When the pump is working, please make sure that the pump is draining freely so that it does not hold the pump and cause damage to the pressure switch. (If you hear the switch ticking during operation, turn off the pump immediately and adjust the pressure appropriately).
• The water pump works intermittently, not continuously for 24 hours. In winter, after use, it needs to drain the pump and pipe water, otherwise, it is easy to freeze and rupture the pump (only for some cold icing areas).
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
