Universal T3 T04E V-Band Turbocompresor 1.5L-2.5L + 2.5" Manguera Tubería Kit

* This is universal application turbo, so modification might be required for some vehicles.

T3 T04E Turbocharger with Internal Wastegate

Application

Perfect for all 4 or 6 CYL, 1.5L-2.5L engines

Cooling Type: Oil Cooled Wastegate Internal

Horse Power: Horse Power Boost up to 420HP

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

Exhaust Outlet Flange: V-Band Flange

Specification

Compressor

Compressor Trim: 48.1

Compressor Inducer Diamter: 52.7 mm

Compressor Exducer Diamter:  76 mm

Compressor A/R: 0.5

​

Turbine

Turbine Trim:74.2

Turbine Inducer Diamter:  64.8 mm

Turbine Exducer Diamter: 55.8 mm

Turbine A/R: 0.63

2.5" Universal Aluminum Intercooler Pipe Kit

-Made out of high quality of 6061 aluminum Manual polishing finished
-Manufactured from high quality aluminum for durable use:
-Straight Layout and Appropriate Pipes' Radius lead to less pressure loss
-High Pressure Resistant Hoses bring out high of intercooler
-All pipes are well externally polished
-All intercoolers are bar & plate design for better cooling efficiency
-Professional Installation Is Highly Recommended
-Pipe Thickness: 1.8mm
-Pipe Length: 18"

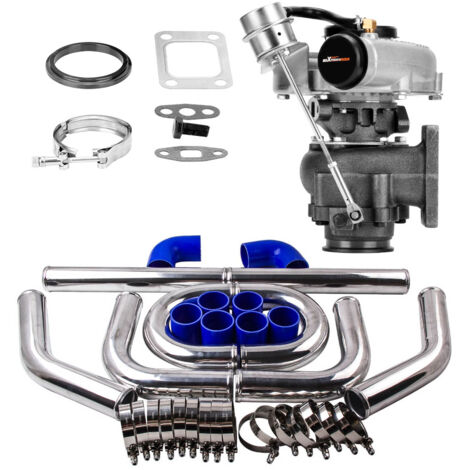

Package includes

1x Turbocharger
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: 2 Years
Accessories: You will get exactly as shown in the picture above

Note:
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
