Turbocompresor for Nissan Skyline R34 GTT RB25DET T3 430BHP turbocharger
con el código
¡Creemos que esto puede interesarte!
Comparar con artículos similares
Información del producto
Descripción
Application
Directly bolt on for Nissan Skyline R32 R33 R34 2.0L-2.5L RB20DET RB25DET engine For some R33 models few modifications may be required (A direct Bolt on turbo upgrade for RB20DET and RB25DET for Skyline Engines!Will require a coupler to connect turbo to hotpipe but other than that its a OEM Bolt on with upgrade 3" air inlet and larger wheels for optimum power. )
Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet Flange: 6-Bolt Flange
Turbine
Turbine Inducer Diameter: 64.4mm
Turbine Exducer Diameter: 47.9mm
Turbine Trim: 55.3
Turbine A/R: 0.63
Compressor
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76mm
Compressor Trim: 48.1
Compressor A/R: 0.5
Bearing: Wet Float
Cooling Type: Water + Oil
Warranty: 2 Years for any manufacture defects
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5
Wastegate：With Wastegate
Horse Power: Boost Horse Power up to 500BHP

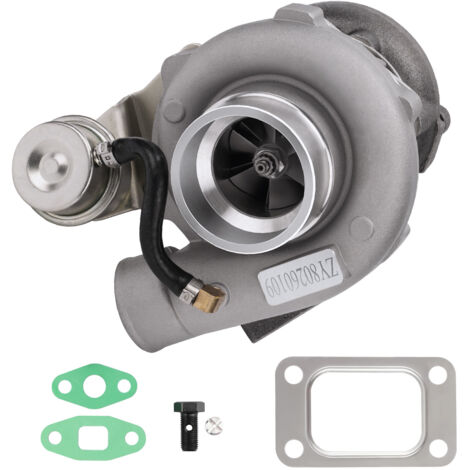

Accessories: You will get exactly as picture shown
Material Feature
1. Turbine housing: Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing: ZL104 aluminum with lightweight
4. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance
Product ：
1. Rich Experience In Turbo Production And Own Factory
2. Quality Assurance
3. High Rotor
4. High-Speed Oil Seal Ring
5. Strict Quality Inspection
6. Precision Clearance
7. High-speed Accessories
Note:
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended(No Instruction Included)
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
HOW TO IDENTIFY YOUR TURBOCHARGER:
If you are not sure fitment for your old turbo , please let us know this information:
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger
Características
- MarcaMAXPEEDINGRODS
- MaterialMetal / Aluminio
- Garantía2 año(s)
- Motorización compatibleDiésel
- Referencia ManoManoME98413273
