Turbo Turbine para Subaru IMPREZA EJ20 EJ25 engine 02-06 Turbocompresor
- Oferta válida sólo hoy.
¡Creemos que esto puede interesarte!
Comparar con artículos similares
Información del producto
Descripción
Application

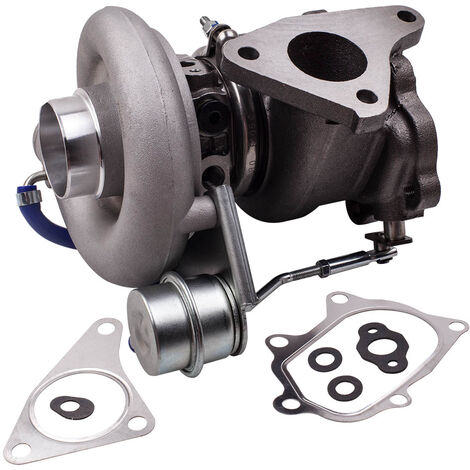

TD05 20G Upgraded Turbo For Subaru IMPREZA for WRX / STI EJ20 EJ25 engine 2002 - 2006
Specification
Exhaust Outlet Flange:5-Bolt Flange
Exhaust Intlet Flange:3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm
Oil Feed: M10*1.5
Oil Drain: 2*M6*1.0
Water In/Out: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm
Bearing Type: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Turbo Model: TD05 20G
Thrust Bearing: 270 degree
Hosepower: Up to 420 HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g
Feature:
* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. Advanced Actuator Tester/Programmer
NOTE:
* Please confirm your original fitment before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Características
- MarcaMAXPEEDINGRODS
- Largo30 cm
- Ancho28 cm
- Alto24 cm
- MaterialAcero
