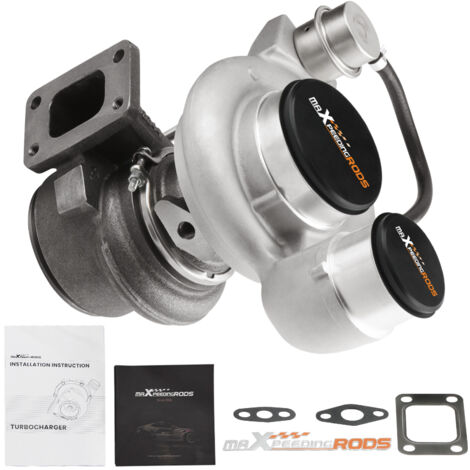

Turbina Abgasturbolader turbocompressor for Dodge RAM 2500/3500 T3 Flange 03-04
- Oferta válida sólo hoy.
¡Creemos que esto puede interesarte!
Comparar con artículos similares
Información del producto
Descripción
Applications:
for Cummins Truck DP, Leyland with 6BTA Engine 5.9L 2003-2004
for Dodge RAM 2500/3500 with ISB Engine 5.9L 2003-2004
OE/Part Number
3599810, 3599811, 4089392, 4035044, 4955452，
3593075, 4033667, 4035044, 4089141, 3599867,
4089392NX, 408939200, 4033667, 4033667H,
4089392RX, 5086863, 5086863AA, 5086863AB
Specification
Turbo Model: HY35W, HY35W-E7755AQ/B10JX35
Engine Code: ISB, 6B
Hose power: Capable of Boosting Horse Power up to 400+ BHP
Exhaust (Turbo Manifold) Flange: Standard T3
Exhaust Flange: Standard HY for Dodge Cummins 4.375"" O.D. V-Band
Bearing Type: Journal Bearing
Cooling Type: Oil Cooled
Condition: 100% Brand New
Compressor:
Trim:69
Inducer Diamter:68.7
Exducer Diamter:97.8
A/R: 0.66
Turbine:
Trim: 92
Inducer Diamter: 87.4
Exducer Diamter: 77.8
A/R: 0.96
Feature
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. Quality assurance
4. High-Speed oil seal ring
5. Strict quality inspection
6. Precision clearance
*All necessary gaskets included for ease of installation
Nota
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Características
- MarcaMAXPEEDINGRODS
- MaterialAluminio
- Cantidad en el pack1 .
- Motorización compatibleDiésel
- Referencia ManoManoME90331562
