Timing Chain Set For AUDI VW SEAT SKODA 1.8/2.0 TSI TFSI Golf Eos GTI 06K109467

Application:

for Audi  A3 (8P1)  1.8 TFSI  11/2006 >
ENGINE CODE : CDAA, BZB, BYT
for Audi  A3 (8P1)  1.8 TFSI quattro   07/2008 >
ENGINE CODE :  CDAA
for Audi  A3 Convertible (8P7)  1.8 TFSI   04/2008 >
ENGINE CODE :   CDAA, BZB
for Audi  A3 Sportback (8PA)     1.8 TFSI   11/2006 >
ENGINE CODE :  CDAA, BZB, BYT
for Audi  A3 Sportback (8PA)     1.8 TFSI quattro   07/2008 >
ENGINE CODE :  CDAA
for Audi  TT (8J3)     1.8 TFSI    06/2008 >
ENGINE CODE : CDAA
for Audi  TT Roadster (8J9)     1.8 TFSI      06/2008 >
ENGINE CODE :  CDAA
for Seat   ALHAMBRA (710)     1.8 TFSI    11/2012 >
ENGINE CODE :   CDAA
for Seat   ALTEA (5P1)     1.8 TFSI     1.8  01/2007 >
ENGINE CODE :  CDAA, BZB, BYT
for Seat   ALTEA XL (5P5, 5P8)     1.8 TFSI   01/2007 >
 ENGINE CODE : CDAA, BZB, BYT
for Seat   LEON (1P1)     1.8 TSI    06/2007 >
ENGINE CODE :  CDAA, BZB
for Seat   TOLEDO III (5P2)     1.8 TFSI    01/2007 >
ENGINE CODE :  CDAA, BZB, BYT
for Skoda  OCTAVIA (1Z3)     1.8 TSI  06/2007 >
ENGINE CODE :  CDAA, BZB
for Skoda  OCTAVIA Combi (1Z5)     1.8 TSI 06/2007 >
 ENGINE CODE : CDAA, BZB
for Skoda  OCTAVIA Combi (1Z5)     1.8 TSI 4x4     11/2008 >
ENGINE CODE :  CDAA
for Skoda  SUPERB (3T4)     1.8 TSI    03/2008 >
ENGINE CODE :  CDAA, BZB
for Skoda  SUPERB (3T4)     1.8 TSI 4x4     11/2008 >
ENGINE CODE : CDAA
for Skoda  SUPERB Estate (3T5)     1.8 TSI    10/2009 >
ENGINE CODE :  CDAA
for Skoda  SUPERB Estate (3T5)     1.8 TSI 4x4      10/2009 >
ENGINE CODE :   CDAA
for Skoda   Yeti (5L)     1.8 TSI 4x4    05/2009 >
ENGINE CODE :  CDAA
for VW  CC (358)     1.8 TSI  11/2011 >
ENGINE CODE :  CDAA
for VW  GOLF VI (5K1)     1.8 TSI   06/2009 >
ENGINE CODE :  CDAA
for VW   PASSAT (362)     1.8 TSI     08/2010 >
ENGINE CODE :   CDAA
for VW   PASSAT (3C2)     1.8 TSI    05/2007 >
ENGINE CODE :   BZB, CDAA
for VW   PASSAT ALLTRACK (365)   1.8 TSI     01/2012 >
ENGINE CODE :  CDAA
for VW   PASSAT CC (357)  1.8 TSI   06/2008 >
ENGINE CODE : BZB, CDAA
for VW   PASSAT Variant (365)  1.8 TSI   08/2010 >
ENGINE CODE : CDAA
for VW   PASSAT Variant (3C5)  1.8 TSI   05/2007 >
ENGINE CODE : BZB, CDAA
for VW   SHARAN (7N)  1.8 TSI   05/2012 >
ENGINE CODE : CDAA

Engine Codes:

CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA,
CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CDAA,
CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA,
CETA, CFKA, CGYA, CJEB, CJBA, CJSB

OEM & Part Number:

06H109467N  06H 109 467 N    timing chain tensioner
06H109467R  06H 109 467 R    timing chain tensioner
06H109158N  06H 109 158 N     timing chain balance shaft
06H109158J 06H 109 158 J    timing chain
06H109509P 06H 109 509 P    Lower Timing Chain
06H109 469AD 06H 109 469 AD    Lower Timing Chain
06H109469AN 06H 109 469 AN    slide balance shaft chain
06H109469AP 06H 109 469 AP    Upper Timing Chain
06H109469T 06H 109 469 T     slide camshaft
06H109509Q 06H 109 509 Q    Left Lower Timing Chain Guide Rail

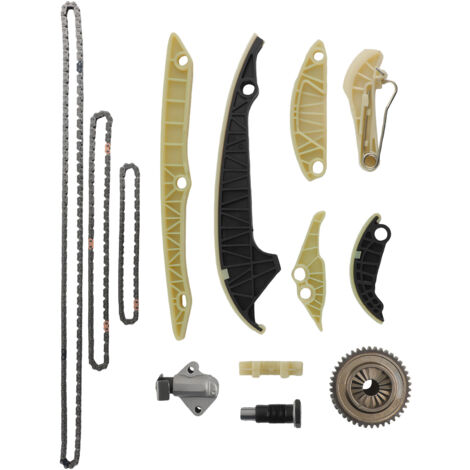

Kit Includes :

Upper Timing Chain x1
Oil Pump Chain x1
Lower Timing Chain x1
Upper Guide Rails x4
Lower Gude Rails x3
Timing Tensioner x2
Gears x1
