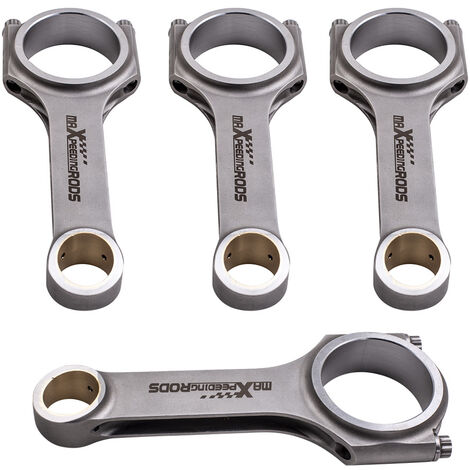

4X H-Beam Bielas Bielle Connecting Rods para Audi VW 1.9L TDI PD90 PD100 PD115

Application

for VW TDI 1.9L PD90 PD100 PD115 Type 4340 EN24

Fitment Details

for VW Golf TDI MK III 1993-1999 Hatchback 1.9 , 1.9 for TDI Syncro
for VW Golf TDI MK III 1994-1999 Estate 1.9 , 1.9 for TDI Syncro
for VW Golf TDI MK V 2003-2009 Hatchback 1.9 , 1.9 for TDI 4motion
for VW Golf TDI Cabriolet MK III 1995-2002 Convertible 1.9
for VW Jetta TDI MK III 2005-2010 Saloon 1.9

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Center to center length:144mm/5.669"
Big end diameter:50.6mm/1.992"
Small end diameter:26.01mm/1.024"(tapered small end)
Big end width:25mm/0.984"
Small end width:25mm/0.984"

Feature

1. TüV Certification Con Rods；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
