Amortiguadores Suspensión tuning for Honda Civic 1988-2000 CR-X Acura Integra

Application: Only model with rear fork mount

For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3 \EF4\EF5\EF9)

For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only
(ED8\ED9\EE6\EE8\EF6\EF7\EF8)

For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)

For Honda CR-X del Sol 1992-1995 EG (EG1)

For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)

For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only

For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only

Notice: The coilover kit will "lower your car" and will not maintain the original ride height.

Note: For some vehicles, you will need sleeves and washers which are already included in our package.

Specification:

Adjustable Height: Lowering 1-3 inches
Damping: 24 levels of adjustable rebound damping
Front Upper Mount: Pillow Ball
Rear Upper Mount: Rubber
Spring Rate Front: 8kg/mm ​​(448lbs/in)
Spring Rate Rear: 5kg/mm ​​(280lbs/in)
Front Spring Length: 180mm
Rear Spring Length: 180mm
Front Shock Total Length: 310mm~355mm
Rear Shock Total Length: 435mm-480mm
Shock Type: Twin Tube
Spring Preload: 7-10mm

Feature:

1. 1" - 3" lowered height adjustment allows for a lower center of gravity and also adds a more aggressive stance
2. A 24 level of rebound damping adjustment allows you to perfectly dial in your coilover settings. You'll experience better ride quality under all road conditions.
3. Upper rubber mounts help deliver a smooth and forgiving ride for around town use at any speed and rubber seals help absorb hard impacts.
4. Twin-tube structure allows for sufficient stroke within the shock absorber.

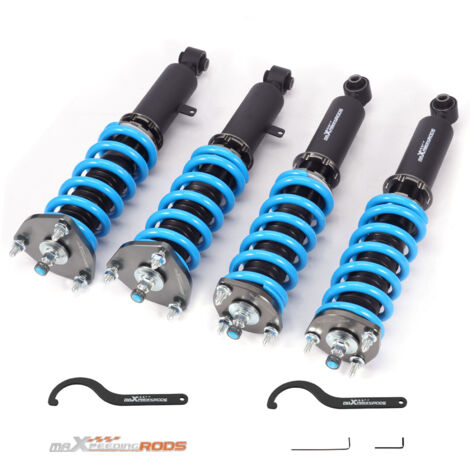

5. Complete 4-shock and 4-spring suspension kit for easy installation.
6. Separate height adjustment does not affect shock stroke.
7. Height can be adjusted with coilovers installed on the vehicle.
8. High Tensile Performance Spring - STRESS TESTED OVER 600,000 times while spring distortion is less than 0.04%. Additionally, special surface treatment improves durability and performance.
9. Height adjustment tools included.
10. Most of the parts in our coilover systems including brackets, collars and spring perches are engineered from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust-resistant components.
11. Steel shock bodies with special surface treatment for improved durability.
12. Completely rebuildable.

Introduction

maXpeedingrods T6 lowering spring, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate (for some vehicles) and decent outlook, offers you more ability to tune your suspension performance and gives your vehicle a more impressive look. Moreover, all of our coilovers are assembled in a dust-free factory, resulting in good quality and long life span.
