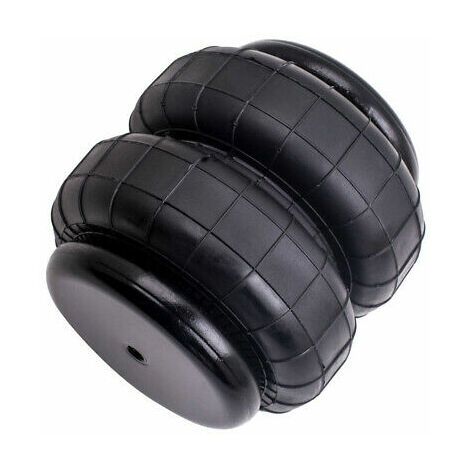

2500 lb Single 1/2 "NPT puerto aire primavera bolsa suspensión shock Strut

These air suspension bags are aftermarket ones. They will replace the original rear air springs.

Application:
Universal Air Suspension Bags
for Ford F150/F250,
for GMC Sierra,
for Chevrolet Silverado,
for Dodge Ram 1500 2500 3500, etc
(Fits for most brand trucks)

Specification:
Air spring bag capacity: 2500LBS
Loading Cap. at 3.0bar: 2.88KN
Loading Cap. at 7.0bar: 7.25KN
Single Air Port Size: 1/2 NPT
Min Height: 65mm
Max Height: 175mm
Working Stroke: 110mm
Install Hole Size: 3/8-16UNC
Top Plate Diameter: 113mm
Air Spring Body Diameter: 145mm
Placement on Vehicle: Left, Right, Front, Rear
Fitment Type: Direct Replacement
Part Type: Air Ride Spring Bag, Single Part
Adjustable: Yes
Greasable or Sealed: Sealed
Package Content: 1 x A Pair of Air Suspension Bag
Warranty: 2 years
Condition: Brand New Never Used Or Installed

Feature:
Air Ride Spring Bag is made in steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability
This front air suspension kit is suitable for Air suspension bags with 1/2" NPT Single Port. Three Mounting Holes at its Bottom. Fits tightly to for your front air suspension strut.

Important Notice
* Before purchasing, please confirm whether the air spring bag parameters (especially height, diameter, bolt specifications) are consistent with ours
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us via eBay message
